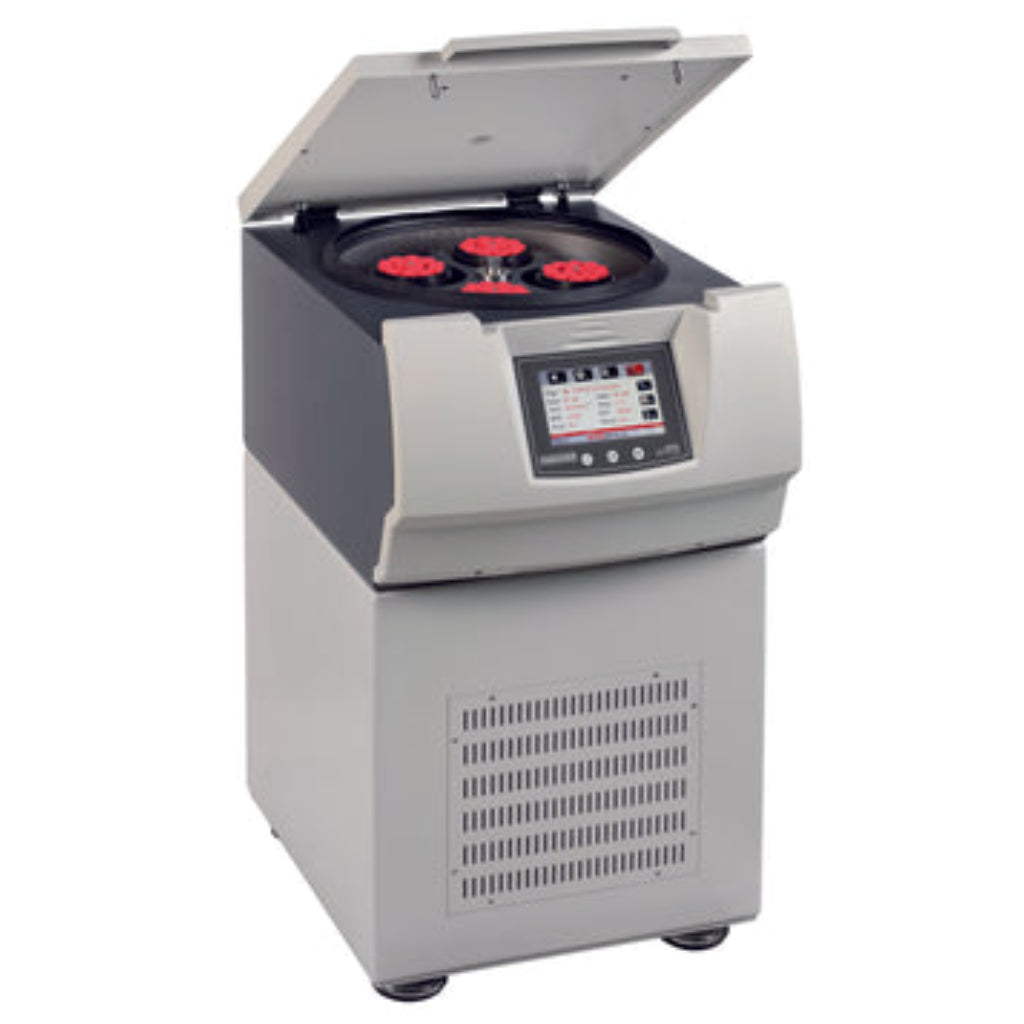

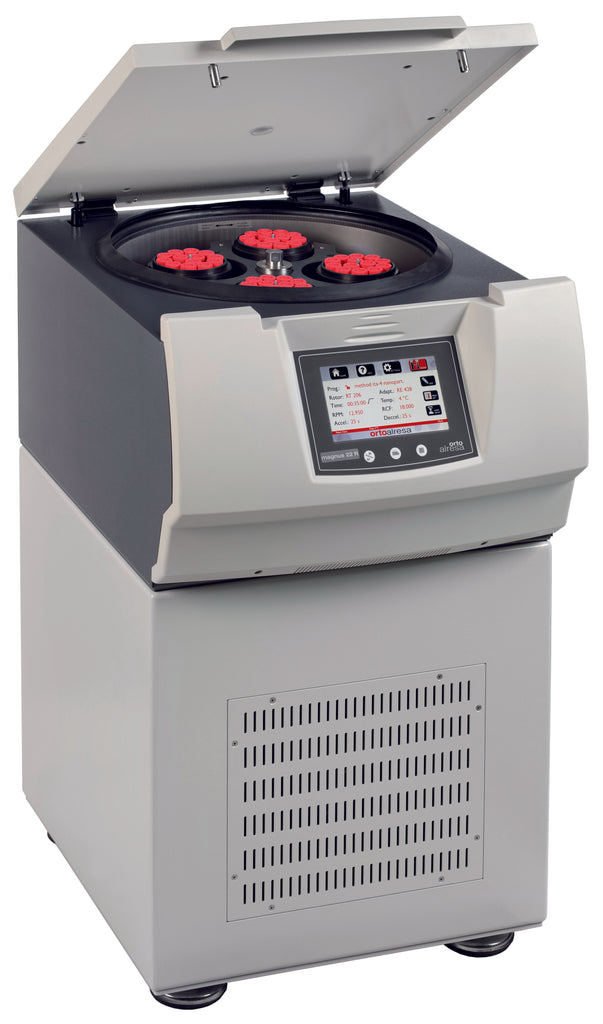

Magnus 22R - Centrifuge

Magnus 22R - Centrifuge
Regular price (Magnus22R) Please request a quotation

Magnus 22

Max. capacity: 4 x 750 ml.

Max. speed: 21.948 xg / 14.300 RPM

The refrigerated version of our floor standing equipment offers the maximum perShapence for your processes. Its design enables it to be installed in any space in the lab, avoiding the occupation of useful space. Its ergonomic design allows easy access to the rotor as well as traceability of the positioning to balance the load and easy identification.

With a wide range of accessories that offers capacities for tubes of 750 ml., micro-plates, micro-tubes and a great number of positions for the more common use tubes of 15 ml. conical, 50 ml. conical, 15 ml., 10 ml., and 5 ml. for clinical applications. It also has a specific rotor for blood bags and tubes extraction. Its powerful refrigeration system enables it to maintain the minimum temperature of the chamber below 4°C regardless of the type of rotor and the speed selected. This characteristic gives the user confidence in traceability during the centrifugation cycle.

Features

TFT color touch screen, visible from more than 3 m.

  • Shows RPM and RCF, time, temperature, acceleration/deceleration values (PCBS and unbalancing location system (ULS).
  • Speed programming in 10 RPM/10 xg steps.
  • Real RCF values on screen based in accessories configuration.
  • Count up/down from “0” or at “set RPM/RCF” for test reproducibility.
  • Timer countdown/up from “0” or at “set RPM/ RCF” for reproducible tests.
  • Timer from 1 min to 99 hours programmable in 1 sec. steps and hold position.
  • PCBS: Progressive controlled acceleration and braking system up to 175 selectable ramps that prevents sample homogenization after separation.
  • ULS: Unbalancing location system indicating on the screen the number of the bucket which produces the unbalance switch off.
  • 40 programmable memories, with protection under password.
  • Several acoustic and visual messages warning the user the device situation.

User Friendliness

  • Microprocessor controlled. PC connection.
  • Induction motor maintenance free (brushless).
  • Rotors and adapters list on memory.
  • Noise level: below 60 dB.
  • Start, stop, open lid and short spin with adjustable speed buttons.
  • Option of free/locked adjustment of RPM/ RCF along the run.
  • Automatic open lid, programmable.
  • Last values remain in memory.
  • Automatic rotor recognition. Over-speed protection.

Safety

  • Lid provided with security systems:
    – Automatic lid lock system, motorized with double lock.
    – Emergency lid-lock release.
    – Locking and protection against opening along the run.
    – Lid dropping protection.
    – Port in the lid for calibration and operation checking.
  • Unbalance detection and switch off.
  • Protection safety ring between the centrifugation chamber and the housing.
  • Chamber of centrifugation in stainless steel (easy cleaning).
  • Rotors can be removed with the lid closed.
  • Rotors and adapters autoclavable, easy to install by the user.
  • Automatic disconnection for energy saving up to 8 h.

Cooling

  • Remains the refrigeration after centrifugation process.
  • Precooling program with rotor spinning and temperature selectable.
  • Guarantee 4 °C at maximum RPM.
  • Temperature range from -20°C (-4°F) to 40°C (104°F) in 1°C/1°F steps. Programmable in °C o °F.
  • Temperature sensor inside the chamber.
  • Gas R 449A HFO (CFC free).

Standards and Directivies

EU Directives: 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 98/79/EC.
Regulation n°: (EC) 1005/2009, (EU) 517/2014.
Standards: EN 61010-1, EN 61010-2-020, EN 61326-2-6,  EN 61326-1.

Versions

Dimensions (mm)(w x d x h) Net weight (Kg) Voltage
(V)
Frecuency
(Hz)
Consumption
(W)
Z max Advisable(Hz)
CE 193 540 650 930 145 220-230 50-60 1050 <| 0.446 |
CE 194 540 650 930 145 110-120 50-60 1050 <| 0.446 |

Compatible Rotors

RT 191 (1)(4)
RT 191 (1)(4)

Rotor: Swing out
Max. capacity: 4 x 750 ml.
RPM Max: 3.700
Radio (mm): 204
RCF Max. (xg): 3.122

RT 192
RT 192

Rotor: Swing out
Max. capacity: 4 x 250 ml.
RPM Max.: 4.200
Radius (mm): 202
RCF Max. (xg): 3.984

RT 195
RT 195

Rotor: Swing out
Max. capacity: 104 x 5 ml.
RPM Max.: 3.800
Radius (mm): 185
RCF Max. (xg): 2.987

RT 197
RT 197

Rotor: Angle fixed 45º
Max. capacity: 8 x 50 ml.
RPM Max.: 6.000
Radius (mm): 149
RCF Max. (xg): 5.997

RT 198
RT 198

Rotor: Angle fixed 45º
Max. capacity: 4 x 100 ml.
RPM Max.: 5.600
Radius (mm): 138
RCF Max. (xg): 4.838

RT 199
RT 199

Rotor: Angle fixed 30º
Max. capacity: 4 x 250 ml.
RPM Max.: 4.700
Radius (mm): 153
RCF Max. (xg): 3.779

RT 201 (1)(2)(4)(5)
RT 201 (1)(2)(4)(5)

Rotor: Swing out
Max. capacity: 4 blood bags
RPM Max.: 3.700
Radius (mm): 204
RCF Max. (xg): 3.122
*Only available for refrigerated models.

RT 202 (4)
RT 202 (4)

Rotor: Swing out
Max. capacity: 12/8/4 microtiter
RPM Max.: 3.700
Radius (mm): 182
RCF Max. (xg): 2.786

RT 206
RT 206

Rotor: Angle fixed 45º
Max. capacity: 30 x 1,5-2 ml.
RPM Max.: 14.300
Radius (mm): 96
RCF Max. (xg): 21.948

RT 238
RT 238

Rotor: Angle fixed 30º
Max. capacity: 6 x 85 ml.
RPM Max.: 9.000
Radius (mm): 112
RCF Max. (xg): 10.142

RT 245 (2)(3)
RT 245 (2)(3)

Rotor: Swing out
Max. capacity: 10/6/2/2 microtiter
RPM Max.: 4.500
Radius (mm): 166
RCF Max. (xg): 3.758
*Only available for refrigerated models.

RT 250
RT 250

Rotor: Swing out
Max. capacity: 4 x 250 ml.
RPM Max.: 4.000
Radius (mm): 206
RCF Max. (xg): 3.756

RT 264
RT 264

Rotor: Swing out
Max. capacity: 6 x 250 ml.
RPM Max.: 2.500
Radius (mm): 212
RCF Max. (xg): 1.481

Download Datasheet
