Equipment

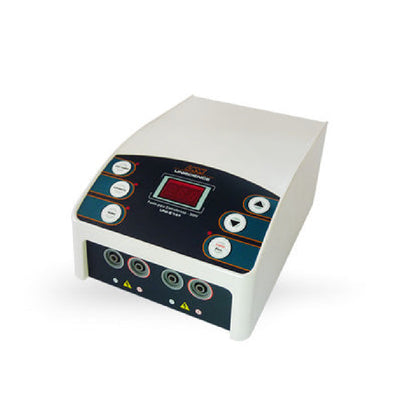

Featuring in small size and versatility, the newly designed Uniscience Power Supply is an ideal choice for any researcher. Capable of providing constant voltage or current in 1V or 1mA increment, the unit is perfectly suitable to run both vertical polyacrylamide or horizontal agarose gel electrophoresis experiments. The continuous or timed operation can be easily set up using a simple and user-friendly interface. The UNI-E141 power supply features 2 electrode pairs, allowing for 2 gels to be run simultaneously, saving both time and valuable bench space. With a universal voltage rating, the UNI-E141 power supply is also designed and constructed to the most rigorous safety standards.
Features
- Constant voltage or constant current operation
- 1V increment voltage control; 1mA increment current control
- Max 300V, 400mA, and 60W for Mini Pro 300V
- Two pairs of outlet terminals
- Timer with alarm function
- Safety device
- Compact size and lightweight
- Competitive pricing choice
- Packages with midi sized horizontal electrophoresis systems and vertical electrophoresis systems
Specifications
- Output voltage / Inc.: 10 - 300V / 1V
- Output current / Inc.: 10 - 400mA / 1mA
- Output power: 60W
- Output type: Constant voltage or constant current
- Control: Microprocessor controller
- Terminal pairs: 2 Pairs
- Timer: 999 (min) with alarm / Continuous
- Safety device: No-load detection; shrouded plugs and sockets
- Operation temperature: 4oC to 40oC
- Dimension (WxLxH): 5.51"x7.52"x3.31" (140x191x84mm)
- Material: Polycarbonate housing and aluminum base plates
- Weight: Approx. 2.2lb (1kg)
- Rated voltage: Universal, 100 - 240V
- Application: Sufficient for midi sized horizontal and vertical electrophoresis systems
- Program: 2-step (V, mA, )
Features
- Constant voltage or constant current operation
- 1V increment voltage control; 1mA increment current control
- Max 300V, 400mA, and 60W for Mini Pro 300V
- Two pairs of outlet terminals
- Timer with alarm function
- Safety device
- Compact size and lightweight
- Competitive pricing choice
- Packages with midi sized horizontal electrophoresis systems and vertical electrophoresis systems
Specifications
- Output voltage / Inc.: 10 - 300V / 1V
- Output current / Inc.: 10 - 400mA / 1mA
- Output power: 60W
- Output type: Constant voltage or constant current
- Control: Microprocessor controller
- Terminal pairs: 2 Pairs
- Timer: 999 (min) with alarm / Continuous
- Safety device: No-load detection; shrouded plugs and sockets
- Operation temperature: 4oC to 40oC
- Dimension (WxLxH): 5.51"x7.52"x3.31" (140x191x84mm)
- Material: Polycarbonate housing and aluminum base plates
- Weight: Approx. 2.2lb (1kg)
- Rated voltage: Universal, 100 - 240V
- Application: Sufficient for midi sized horizontal and vertical electrophoresis systems
- Program: 2-step (V, mA, )

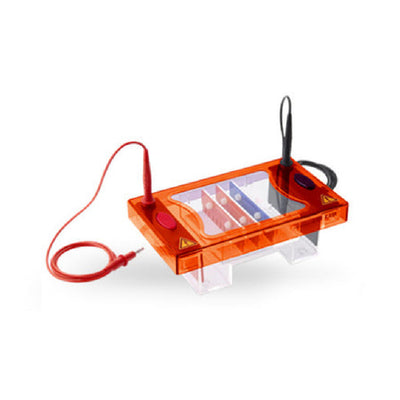

Our Midi series have been designed for routine horizontal gel electrophoresis with wide degrees of versatility. All of our gel tanks are made from injection molded construction for durable and leak proof environment. Varieties of special combs are available to maximize your sample size.
Midi plus-1 includes 10x7 and 10x10cm gel tray to allow 100 samples per gel to be resolved. Ideal for those who routinely checks medium numbers of samples over short to medium gel run lengths.
Features
- Low buffer consumption
- Single molded tank
- Two tray options are available
- Easy sample loading
- Multi-channel pipette compatibility
- Great indications for gel making and running
- No tape, clamps, or springs are needed
Specifications
- Dimension (WxLxH): 8.66"x4.92"x3.54" (220x125x90mm)
- Gel dimension (WxL): 3.94"x2.76" (100x70mm), 3.94"x3.94" (100x100mm)
- Maximum sample: 50 for 3.94"x2.76" (100x70mm) Tray (2x25 sample combs), 100 for 3.94"x3.94" (100x100mm) Tray(4x25 sample combs)
- Buffer volume: 0.08gal (300ml)
- Material: Injection molded construction, Durable, leak-proof environment for complete safety and long life
- Cassette type electrode: Inexpensive, easy to replace, Made of 99.99% corrosion resistant pure platinum
- Electrical safety: Lid can only be fastened in one way, Upon lid removal, power is disconnected from the buffer chamber
- Rapid casting gel: Use casting dams
Midi plus-1 includes 10x7 and 10x10cm gel tray to allow 100 samples per gel to be resolved. Ideal for those who routinely checks medium numbers of samples over short to medium gel run lengths.
Features
- Low buffer consumption
- Single molded tank
- Two tray options are available
- Easy sample loading
- Multi-channel pipette compatibility
- Great indications for gel making and running
- No tape, clamps, or springs are needed
Specifications
- Dimension (WxLxH): 8.66"x4.92"x3.54" (220x125x90mm)
- Gel dimension (WxL): 3.94"x2.76" (100x70mm), 3.94"x3.94" (100x100mm)
- Maximum sample: 50 for 3.94"x2.76" (100x70mm) Tray (2x25 sample combs), 100 for 3.94"x3.94" (100x100mm) Tray(4x25 sample combs)
- Buffer volume: 0.08gal (300ml)
- Material: Injection molded construction, Durable, leak-proof environment for complete safety and long life
- Cassette type electrode: Inexpensive, easy to replace, Made of 99.99% corrosion resistant pure platinum
- Electrical safety: Lid can only be fastened in one way, Upon lid removal, power is disconnected from the buffer chamber
- Rapid casting gel: Use casting dams
Our Midi series has been designed for routine horizontal gel electrophoresis with wide degrees of versatility. All of our gel tanks are made from injection-molded construction for a durable and leak-proof environment. Varieties of special combs are available to maximize your sample size.
Uni-Midi includes 10x7 and 10x10cm gel tray to allow 100 samples per gel to be resolved. Ideal for those who routinely check medium numbers of samples over short to medium gel run lengths.
Features
- Low buffer consumption
- Single molded tank
- Two tray options are available
- Easy sample loading
- Multi-channel pipette compatibility
- Great indications for gel making and running
- No tape, clamps, or springs are needed
Specifications
Dimension (WxLxH): 8.66"x4.92"x3.54" (220x125x90mm)
Gel dimension (WxL): 3.94"x2.76" (100x70mm), 3.94"x3.94" (100x100mm)
Maximum sample: 50 for 3.94"x2.76" (100x70mm) Tray, (2x25 sample combs), 100 for 3.94"x3.94" (100x100mm) Tray(4x25 sample combs)
Buffer volume: 0.08gal (300ml)
Material: Injection molded construction. Durable, leak-proof environment for complete safety and long life
Cassette type electrode: Inexpensive, easy to replace, Made of 99.99% corrosion resistant pure platinum
Electrical safety: The lid can only be fastened in one way, Upon lid removal, power is disconnected from the buffer chamber
Rapid casting gel: Use casting dams
Uni-Midi includes 10x7 and 10x10cm gel tray to allow 100 samples per gel to be resolved. Ideal for those who routinely check medium numbers of samples over short to medium gel run lengths.
Features
- Low buffer consumption
- Single molded tank
- Two tray options are available
- Easy sample loading
- Multi-channel pipette compatibility
- Great indications for gel making and running
- No tape, clamps, or springs are needed
Specifications
Dimension (WxLxH): 8.66"x4.92"x3.54" (220x125x90mm)
Gel dimension (WxL): 3.94"x2.76" (100x70mm), 3.94"x3.94" (100x100mm)
Maximum sample: 50 for 3.94"x2.76" (100x70mm) Tray, (2x25 sample combs), 100 for 3.94"x3.94" (100x100mm) Tray(4x25 sample combs)
Buffer volume: 0.08gal (300ml)
Material: Injection molded construction. Durable, leak-proof environment for complete safety and long life
Cassette type electrode: Inexpensive, easy to replace, Made of 99.99% corrosion resistant pure platinum
Electrical safety: The lid can only be fastened in one way, Upon lid removal, power is disconnected from the buffer chamber
Rapid casting gel: Use casting dams

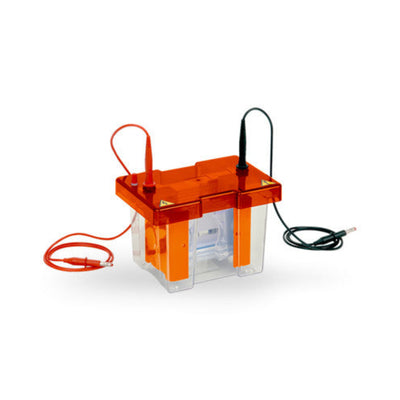

Mini Vertical is an injection-molded vertical electrophoresis system providing a leak-proof environment and safe operation. Its vertical tank is designed for blotting compatibly. The dual 10x10cm plate is the most popular application and it is capable of handling up to 4 plates. In addition, packages with a Mini 300V Power supply are ideally offered to individuals in the laboratory at competitive and acceptable pricing to avoid time waiting for basic instruments and to accelerate experimental progress. Simple rapid and leak-proof gel casting.
Features
- Low buffer consumption
- Single molded tank
- Up to 4 gels run at one time
- Great indications for gel making and running
- Ice cooling pack
- Easy gel casting and no gel leakage
- Competitive pricing
- Compatible with all precast gels (10x10cm or 10x8cm)
Specifications
Dimension (WxLxH): 7.48"x5.12"x5.91" (190x130x150mm)
Plate dimension (WxL): 3.94" 3.94" (100x100mm)
Gel dimension (WxL): 3.35"x3.15" (85x80mm)
Maximum sample: 80 samples, 20 samples per gel
Buffer volume: 0.07gal -0.32gal (250 -1200m|)
Ice cooling pack: Yes
Dummy plate and casting base: Yes
Material: Injection molded construction, Durable, leak-proof environment for complete safety and long life
Electrical safety: Lid can be fastened in only one way, Upon lid removal, power is disconnected from the buffer chamber
Rapid casting gel: Use gel maker stand
Features
- Low buffer consumption
- Single molded tank
- Up to 4 gels run at one time
- Great indications for gel making and running
- Ice cooling pack
- Easy gel casting and no gel leakage
- Competitive pricing
- Compatible with all precast gels (10x10cm or 10x8cm)
Specifications
Dimension (WxLxH): 7.48"x5.12"x5.91" (190x130x150mm)
Plate dimension (WxL): 3.94" 3.94" (100x100mm)
Gel dimension (WxL): 3.35"x3.15" (85x80mm)
Maximum sample: 80 samples, 20 samples per gel
Buffer volume: 0.07gal -0.32gal (250 -1200m|)
Ice cooling pack: Yes
Dummy plate and casting base: Yes
Material: Injection molded construction, Durable, leak-proof environment for complete safety and long life
Electrical safety: Lid can be fastened in only one way, Upon lid removal, power is disconnected from the buffer chamber
Rapid casting gel: Use gel maker stand
