Equipment

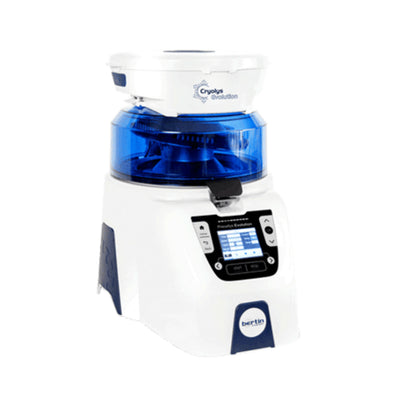

Cryolys Evolution is a patented cooling system compatible with Precellys Evolution. It prevents thermo-sensitive samples from heat degradation during the homogenization process.
The Cryolys Evolution is the cooling system specially developed for Precellys Evolution tissue Homogenizer.
Based on dry ice sublimation, it enhances the efficiency of molecular extraction, resulting in premium quality analysis, maintaining the desired temperature between 0 and 10°C before and during the homogenization.
The Precellys Evolution tissue Homogenizer software monitors the temperature for fully accurate results. It allows an optimal protection of the sensitive molecules from heat degradation. Cryolys Evolution is the ideal solution when working on native state thermo-sensitive molecules such as active RNA, siRNA, metabolites, enzymes, proteins while getting a high yield extraction.
Watch Cryolys Evolution in action, the most efficient cooling unit!
- Efficient cooling: before, during, and after processing
- No need for compressed air or power supply
- Accurate temperature monitored by Precellys® Evolution software
- Minimal bench space
Capacity:
- 1,5kg/3,3lb of dry ice
Space requirement:
- Heigh over bench: 70cm
- Depth of the bench: 70cm
Dry ice consumption:
- 1,5kg/3,3lb for 30 min (run time)
Weight:
- Full unit: 2,6kg/5,7lb
- Detachable cooling module: 1,3kg/2,8lb
Dimensions:
- Length: 335mm
- Width: 335mm
- Height: 100mm
Requirement:
- Unit plugged to a Precellys Evolution
Noise:
- <60dB
Norms:
- CE
Catalog number:
- EQ05648-300-RD001.0
The Cryolys technology presents two main features:
1- The cooling patented technology of Cryolys Evolution is based on the cold generated during dry ice sublimation by ambient air without frost apparition. The ambient airflow in contact with dry ice is getting immediately cooled and is injected in the tubes area.
2- This airflow is adjusted depending on the desired temperature and the monitored temperature ensuring protocol’s accuracy and therefore fragile molecules protection during the homogenization process.
Benefits
Easy to install:
- Powered and controlled by Precellys Evolution, no compressed air required
Easy to use:
- Precellys Evolution software automatically monitors the protocol run
Fast and accurate:
- Target temperature reached in less than 2minutes and fully monitored

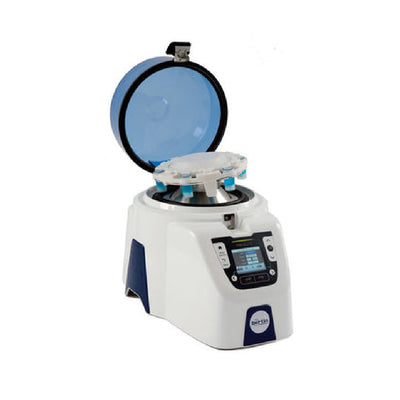

Precellys Evolution is the most advanced homogenizer combining high efficiency and versatility for all sample preparation needs.
Precellys Evolution is the universal tissue homogenizer combining high flexibility and high efficiency for either routine or R&D projects.
Especially designed for L3 laboratories, the Precellys Evolution is based on 10 years of sample preparation expertise. It offers optimal robustness and safety. The Precellys Evolution possesses a unique automatic tube locking system – a real push-and-play system.
The Precellys Evolution can process five different sizes of tubes (0.3mL in well-plate format, 0.5, 2, 7 and 15mL) and up to 24 tubes simultaneously.
Its flexibility and high efficiency give users the ability to grind, homogenize or lyse any type of soft or hard sample from animal, human, plant or microorganism sources in seconds.
Watch Precellys Evolution – the most efficient and flexible homogenizer – in action!
Genclis SAS is a CRO mainly working on food samples. The aim of this application is to extract proteins recognized by IgE antibodies from allergic patients. The challenge is to extract protein with the best possible quality. The Precellys Evolution extracts high quality proteins in large quantities from dry food samples. Moreover, the capacity to process 6 x 15mL tubes is a real advantage and saves time.
Capacity:
- From 8 to 96 wells, 300µL
- From 1 to 24 tubes, 2mL/0.5mL
- From 1 to 12 tubes, 7mL
- From 1 to 6 tubes, 15mL
Speed range:
- From 4,500 rpm to 10,000 rpm (increment by 100 rpm)
Locking system:
- Automatic tubes locking system – patented
Programs:
- The software allows users to save an unlimited number of protocols
Number of cycles:
- up to 10
Cycles time:
- up to 90sec (increment by 1sec)
Weight:
- 60lb / 27kg
Dimensions:
- L: 378mm, W: 515mm, H: 400mm (632mm with open lid)
Power requirement:
- 90 – 250VAC / 50-60 Hz Power: 1 kVA
Noise:
- Less than 70 dB
Norms:
- CE and CFR 47 part 15 certified
Catalogue number:
- EQ02520-300-RD000.0
Benefits
Efficiency on every sample:
- Up to 10,000 rpm to process and standardize any sample preparation in seconds. Even the hardest samples such as hair, teeth and bones can be fully ground in a short period of time.
Easy handling:
- The innovative and patented automatic tube locking system allows for easy handling of the Precellys Evolution without advanced training
Best life time:
- The high quality manufacturing of the Precellys Evolution drastically reduces the need for maintenance and additional expenditure over the years – The Precellys Evolution is made in France
Adapted to any type of sample:
- The high flexibility of the Precellys Evolution, which is capable of handling four sizes of tube (0.5, 2, 7 and 15 mL), makes it the perfect tool when processing samples of different sizes, weight or volume.
Precellys technology presents two main features:
1- The 8-figure 3D-motion (multi-directional) movement of the tubes. The same high level of energy given to the beads inside each tube ensures equal homogenization efficiency for all processed samples (up to 24 at once). Thanks to this complex movement, the Precellys Evolution can disrupt any type of sample (even the hardest) in seconds with perfect reproducibility while limiting heat generation.
2- The patented locking vacuum system of the tubes during the process. The Press’n block system saves time and energy. It makes it easier to handle equipment and secures the tubes before the grinding process.
Accessories
- 7mL holder pack for Precellys Evolution. This option can use up to 12 x 7mL tubes in the Precellys Evolution. It contains one tube holder and one blocking plate Cat. No.: SP02520-810-NC010.0
- 15mL holder pack for Precellys Evolution. This option can use up to 6 x 15mL tubes in the Precellys Evolution. It contains one tube holder and one blocking plate Cat. No.: SP02520-810-NC011.0
- 7mL rack Specific rack to handle 12 x 7mL tubes at once
- Centrifuge adaptor for 7mL tubes Specific adaptor to put 7mL tubes in a centrifuge instead of 15mL Falcon tubes

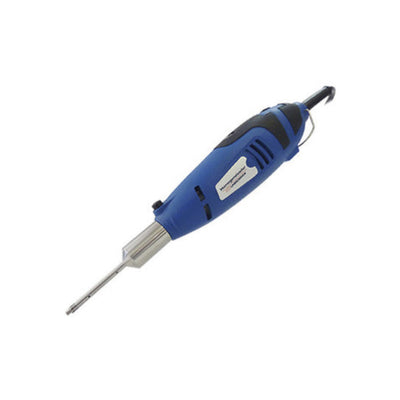

- Ideal for mixing, emulsification, shredding, or chopping
- Practical answer for small samples
- Easy to hold and lightweight for one-hand operation
- Generators are made of 316L Stainless Steel with PTFE bushings
- Autoclavable stainless steel shafts. Inert to aggressive solutions
- All shafts are interchangeable shafts and are easily removed for cleanup
- High-speed motor. Speed control from 8,000 to 30,000 RPM
- Suitable for solvents & abrasive substances
Specifications
Speed range: 8,000 - 30,000 RPM
Sample volume range: 0.1 - 50ml
Speed control: 6 position control dial
Motor type: Universal motor, 130 Watt
Fineness: Suspensions & Emulsion 10-15 & 1-10 um
Noise emission: < 54 dB(A) at 30,000 rpm
Dimensions: 2.5L x 2.5W x 8H inches (drive only)
Weight: 18lbs (with stand) 1.5lbs (drive only)
Voltage: 110Volts, 60Hz

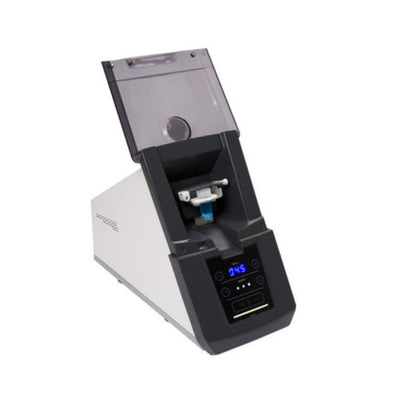

Especially designed for low throughput laboratory workflows, Minilys homogenizes three samples simultaneously in 0.5ml or 2 ml tubes and one sample in 7 ml tubes.
Minilys is a compact and flexible tissue homogenizer to meet particular sample preparation needs for all laboratories working with biological samples.
Especially designed to offer optimal grinding, lysing and homogenizing efficiency, Minilys is capable of handling 3 x 2mL/0.5mL tubes or 1 x 7mL tube to process any type of samples. Its manual but not screw-in locking system makes Minilys an easy-pick-up laboratory instrument.
Affordable, Minilys offers the best personal homogenization solution.
Minilys is ideal for daily lab workflow. Associated with the appropriate lysing kit, Minilys can even grind difficult samples like grains or hairs.
Watch Video - Small and compact, Minilys requires minimal bench space in your laboratory.
Especially designed for low-throughput laboratory workflows and personal use, Minilys homogenizes three samples simultaneously in 0.5ml/2 ml tubes or 1 sample in 7 ml.
Specifications
Capacity:
- from 1 to 3 x 2mL, 0.5mL or 1.5mL tubes
- 1 x 7mL tube
Speed range:
- 3000, 4000 & 5000 rpm
Locking system:
- Manual (no screw-in system)
Cycles time:
- from 5s to 240s
Weight:
- 17lb / 7 kg
Dimensions:
- Length 180mm x Width 290mm x Height 380mm
Power requirement:
- 100 – 230 VAC / 50-60 Hz / Power 1 kVA
Noise:
- less than 70 dB
Norms:
- CE and FCC part 15 certified
Catalogue number:
- EQ06404-200-RD000.0
Benefit
Flexibility:
- Minilys offers the possibility to process either 3 x 0.5, 1.5 or 2mL tubes at once or 1 x 7mL tube.
Easy handling:
- With only two parameters to choose from (speed and time) the Minilys is operational immediately. The non screw-in system to block the tubes makes the Minilys easy-to-use.
Efficiency:
- Minilys is the only small homogenizer based on 3D motion that reaches 5 000rpm. This speed allows users to grind even hard samples like skin or hair.
Technology
The Minilys is the only personal homogenizer based on a 8-figure 3D-motion (multi-directional) movement of the tubes. The same high level of energy given to the beads inside each tube ensures equal homogenization efficiency for all processed samples. Thanks to this complex movement, the Minilys can disrupt any type of sample (even the hardest) in seconds with perfect reproducibility while limiting heat generation. The system used to secure the tubes is manual and very easy to use compared to a screw-in system that can be awkward.
Application
Abstracts of some application notes related to Minilys.
To access all application notes and full versions, visit the Application Center.
- Protein extraction from mouse soft tissues, Immunotherapix, Paris, France, Pharmaceutical sciences (code: 03712-810-DU048)
- RNA extraction from Arabidopsis with Minilys, Institute of Plant Molecular Biology – CNRS, Univ. of Strasbourg, France, Agronomy (code: 03712-810-DU049)
- Mycoviral double-stranded RNA extraction from plant leaf with Minilys, Tokyo University of Agricultural and Technology, Institute of Agriculture, division of Bio-regulation and Bio-interaction, Japan, Agronomy (code: 03712-810-DU051)
- Drug extraction from whole iris-ciliary body pork, PharmOptima, Portage MI, USA, Pharmaceutical sciences (code: 03712-810-DU056)
- RNA Extraction from Mouse Tissues using the Minilys, Cystic Fibrosis and Pulmonary Research Center, University of North Carolina at Chapel Hill, North Carolina, USA, Biomedical & Health sciences (code: 03712-810-DU078)
Register for the Application Center and access more than 1000 scientific references.
Accessories
Microtube adapter set: This option for Minilys allows users to process up to 3 microtubes of 1.5mL at once. 7mL rack Specific rack to handle 12 x 7mL tubes at once Centrifuge adaptor for 7mL tubes Specific adaptor to put 7mL tubes in a centrifuge instead of 15mL Falcon tubes

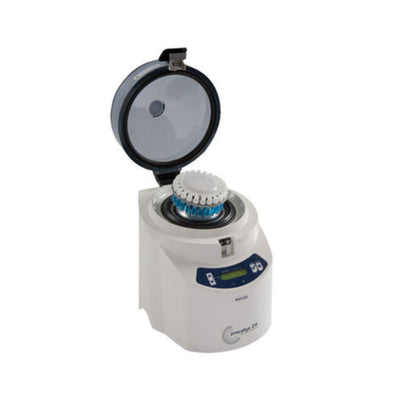

Precellys24 is the perfect high throughput homogenizer solution for routine applications capable of operating up to 24 tubes of 2ml.
Precellys24 is the original tissue homogenizer from the Precellys range.
Its simplicity and efficiency make the Precellys24 the best homogenizer solution for routine and R&D projects.
The Precellys24 can homogenize many different samples in 30 seconds.
It possesses a unique automatic tube locking system, a real push-and-play system that makes the Precellys24 the easiest homogenizer to handle. Especially designed for L3 laboratories, the Precellys24 is used by thousands of scientists around the world. The instrument’s unique 3D motion provides the same high level of energy and homogenization efficiency to all of the tubes. The Precellys24 has the ability to process up to 24 tubes simultaneously.
Watch the Video - This sample preparation solution is not limited to soft-to-hard tissues. It allows sample preparation in 0.5mL or 2mL tubes. Fast and easy, typical homogenization time is 30 seconds for a large majority of samples!
REASONS TO CHOOSE PRECELLYS24 HOMOGENIZER
- Full application support composed of more than 2,000 scientific documents based on user experiences to determine the best protocol for your samples.
- Support is provided online 24/7 by our Application Center, or by our dedicated Application Specialists
- With 30 different lysing kits available, Precellys is the most versatile range of homogenizers.
- It allows users to homogenize, grind or lyse all sample types.
- The easy-handling features allow the Precellys to be used without advanced training
- 10 years of expertise in sample preparation and more than 30,000 scientists who use the Precellys worldwide
- A worldwide distribution network to support you wherever you are
Capacity:
- from 1 to 24 tubes of 2mL or 0.5mL
Speed range:
-
from 4,000 to 6,800 rpm increment of 100 rpm
Locking system:
- Automatic tube locking system – patented
Programs:
- 5 programs (automatically saved after use)
Number of cycles:
- from 1 to 3 cycles
Cycles time:
- from 5s to 90s
Weight:
- 65lb/30kg
Dimensions:
- Length 290mm x Width 375mm x Height 370mm (600mm with open lid)
Power requirement:
- 100 – 230 VAC / 50-60 Hz / Power 1 kVA
Noise:
- less than 70 dB
Norms:
- CE and FCC part 15 certified
Catalogue number:
- EQ03119-200-RD000.0
Benefit
Time saving:
Thanks to the powerful 3D-motion, most of the samples are fully homogenized in 30 seconds
Standardization:
The technology provides the same level of energy to all of the processed tubes. This guarantees the same quality and quantity of extraction from soft to hard tissues (micro-organisms, animal or vegetable tissues)
Easy handling:
The innovative and patented automatic tube locking system allows for easy handling of the Precellys24
Best life time:
The high quality manufacturing of the Precellys24 drastically reduces the need for maintenance and additional expenditure over the years – The Precellys24 is made in France
Protection for thermo-sensitive molecules:
The Precellys24 is compatible with the cooling unit Cryolys. This combination allows users to protect sensitive molecules when processing samples.
Precellys technology presents two main features:
1- The 8-figure 3D-motion (multi-directional) movement of the tubes. The same high level of energy given to the beads inside each tube ensures equal homogenization efficiency for all processed samples (up to 24 at once). Thanks to this complex movement, the Precellys Evolution can disrupt any type of sample (even the hardest) in seconds with perfect reproducibility while limiting heat generation.
2- The patented locking vacuum system of the tubes during the process. The Press’n block system saves time and energy. It makes it easier to handle equipment and secures the tubes before the grinding process.
Abstracts of some application notes related to Precellys24.
To access all application notes and full versions, visit the Application Center.
- DNA Extraction from Rice Grain, Kogene Biotech Co – South Korea, Agronomy (code: 03712-810-DU013)
- Metabolomic study from clam gill, Key Laboratory of Coastal Zone Environment Processes, CAS; Shandong Provincial Key Laboratory of Coastal Zone Environment Processes, Yantai Institute of Coastal Zone Research, Chinese Academy of Sciences, Yantai, China, Animal & Aquaculture science (code: 03712-810-DU044)
- Assessment of Salmonella Typhimurium load within infected nematodes, School of Biosciences, University of Birmingham, Birmingham, UK., Biomedical & Health sciences (code: 03712-810-DU060)
Accessories
- Precellys 24 maintenance kit
- The Precellys 24 maintenance kit enhances the life time of your Precellys 24 equipment.
