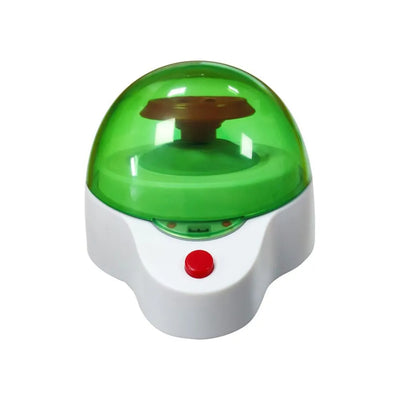

The Micro Centrifuge is simple and convenient to operate. Just put the microtube, cover the lid and start it. The rotor can reach the highest speed in a few seconds, and its centrifugal force is evenly and quickly applied to the microtube. It is especially suitable for handling PCR tubes and microfiltration, quickly throwing off reagents from the tube wall or tube cap, and slow centrifugation of the test tube or tube.
The Uni-Spin - Micro Centrifuge is novel and unique in appearance, smart and versatile. It has three types of centrifugal rotors, suitable for 1.5 mL, 0.5 mL, centrifuge tubes and 0.2 mL, 8-strip centrifuge tubes for PCR. Humanized design, with the function of opening the cover and suspending, and turning the cover when it is closed. Fully transparent round cover, equipped with multiple rotors.
Features:
- Centrifuge 8x1.5 mL centrifuge tubes at the same time, or 4 rows of 0.2 mL PCR tubes;

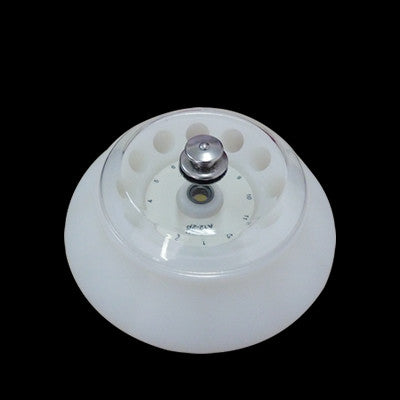

- Equipped with three independent rotors for: 8 or 4 0.2 mL Tubes, 10 0.5 mL Tubes and, 8 1.5 mL Tubes;
- The maximum speed is 7000r/min, and the maximum centrifugal force is about 2500g;
- Low operating noise and stable performance;
- Button control, brushless motor, stop working when the cover is opened
Input:
110V-220V
Output:
24W

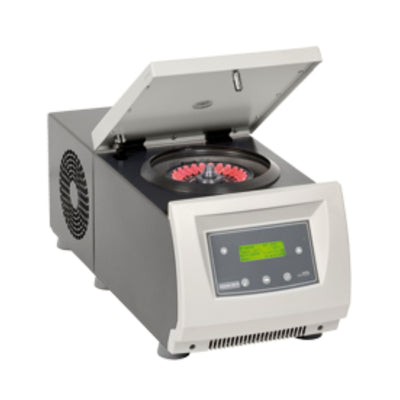

The Biocen 22 R can reach up to 30.034 xg , becoming the necessary tool for most demanding labs. Allows 24 microtubes of 2.2 ml, 32 of 0.2 ml and 8x15 ml, conical.
Usually microcentrifuges work with samples sensitive, valuables, or dangerous ( toxic, radioactive, infectious). Ortoalresa has built the Biocen 22 R with several advantages which allow a safe analysis, without interaction of centrifuge, as:
- Cooling system which maintains the sample temperature at 4°C at max speed,
regardless of the rotor. - Chamber of centrifugation in stainless steel, allowing an easy disinfection on samples
leakages, avoiding contamination form the centrifuge. - Rotors with hermetic lids.
- Accessories sterilizables.
User Friendliness
- LCD screen shown RPM/RCF (on steps 100 RPM/10xg),time, temperature (1°C steps) and braking (1 second steps).
- Intuitive handling through start, stop, short spin and lid keys.
- Rotor list on memory.
- Timer count up/down, from 0 or at “set RPM/RCF” for test reproducibility.
- Short spin key with speed adjustable.
- Automatic rotor recognition.
- Acceleration and braking selectable by operator.
- 15 memories and pre-cooling program.
- Automatic open lid.
- Lid latch lock.
- Microprocessor controlled.
- Option: free or locked adjustment of RPM/RCF along the run.
Features
- Induction motor maintenance free
- Max. capacity 8 x 15 ml.
- Speed, up to 30.034 xg/18.100 RPM.
- Quiet: noise level < 60 dB.
Safety
- Lid locking and holding.
- Imbalance switch off.
- Manual overriding.
- Chamber of centrifugation in stainless steel.
- Viewing and calibration port in the lid.
- Several messages keep the operator informed about the device situation.
- Guard ring between the chamber of centrifugation and the housing.
- Lid dropping protection.
Cooling
- Precooling program with rotor spinning and temperature selectable by operator.
- 4°C at Max speed as higher.
- Temperature range from -20°C (-4°F) to 40°C (104°F).
- Temperature sensor inside the chamber, gas R 404A HFC.
Standards and EC Directives
EU Directives: 98/79/EC, 2006/95/EC, 2004/108/EC, 2011/65/EU, 2012/19/EU.
Regulation: 1005/2009 & 842/2006.
Standards: EN 61010-1, EN 61010-2-020, EN 61326-1.
Versions
Code |
Dimensions (mm)(w x d x h) |
Net weight (Kg) |
Voltage (V) |
Frecuency (Hz) |
Consumption (W) |
||
CE 148 |
276 |
640 |
272 |
34 |
220-240 |
50-60 |
540 |
CE 149 |
276 |
640 |
272 |
34 |
110-120 |
50-60 |
540 |

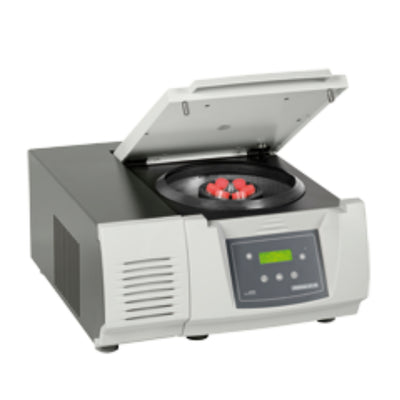

The centrifuge refrigerated Digicen 21R can reach up to 24.959 xg with a wide range of rotors:
- Swing out rotors, with a max volume of 4 x 100 ml which can fit several sets of adapters for tubes with or without caps, microtubes, microplates.
- Angle fixed low speed for routine purposes.
- Angle fixed high speed from microtubes to 50 ml conical tubes.
The LCD screen showing the selectable values like time, RPM, RCF, temperature, and braking time as well as graphics for lid open, progress bar, and acoustic signals for better control of the process by the operator.
The Powerful refrigeration system, enhanced by the pre-cooling program, keep the samples at stable and controlled temperature, avoiding sample temperature fluctuations at introducing into the device.
Stabilizing sample preparation.
User Friendliness
- LCD screen shown RPM/RCF (on steps 100 RPM/10xg),time, temperature (1°C steps) and acceleration/deceleration (1 second steps).
- Intuitive handling through the start, stop the short spin and lid keys.
- Rotor list on memory.
- Timer count up/down, from 0 or at “set RPM/RCF” for test reproducibility.
- Short spin key with speed adjustable.
- Automatic rotor recognition.
- Acceleration and braking are selectable by the operator.
- 15 memories and pre-cooling program.
- Lid latch lock.
- Microprocessor controlled.
- Option: free or locked adjustment of RPM/RCF along the run.
Features
- Induction motor maintenance-free
- Max. capacity 4 x 100 ml.
- Speed, up to 24.959 xg/16.500 RPM.
- Quiet: noise level < 60 dB.
Safety
- Lid locking and holding.
- Imbalance switch off.
- Manual overriding.
- Chamber of centrifugation in stainless steel.
- Viewing and calibration port in the lid.
- Several messages keep the operator informed about the device situation.
- Guard ring between the chamber of centrifugation and the housing.
- Lid dropping protection.
Cooling
- Precooling program with rotor spinning and temperature selectable by the operator.
- 4°C at Max speed as higher.
- Temperature range -20°C (-4 °F) to 40°C (104 °F)
- Temperature sensor inside the chamber, gas R 404A HFC.
- Standards and EC Directives
EU Directives: 98/79/EC, 2006/95/EC, 2004/108/EC, 2011/65/EU, 2012/19/EU.
Regulation: 1005/2009 & 842/2006.
Standards: EN 61010-1, EN 61010-2-020, EN 61326-1.
Versions
| Code | Dimensions (mm)(w x d x h) | Net weight (Kg) | Voltage (V) |
Frecuency (Hz) |
Consumption (W) |
Z max Advisable(Hz) | ||
| CE 113 | 590 | 680 | 320 | 67 | 220-240 | 50-60 | 700 | <|0.446| |
| CE 119 | 590 | 680 | 320 | 67 | 110-120 | 50-60 | 700 | <|0.446| |
Accessories

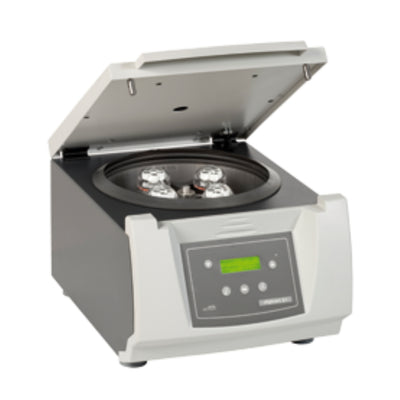

The centrifuge Digicen 21 highlights its versatility among the universal centrifuges and it’s provided of:
Swing out rotors for max 4 x 100 ml for tubes, microplates as well as microtubes.
Angle fixed low speed up to 24 tubes of 15ml.
Angle fixed high speed for microtubes up to 50 ml conical.
It´s controlled through an LCD screen showing centrifugation values like time, RPM/RCF, as well as braking time, graphic for the open lid, progress bar, messages, and acoustic signals for error or end of the program, which provides the user the process monitoring.
Thinking on centrifugation.
User Friendliness
- LCD screen shown RPM/RCF (on steps 100 RPM/10xg),time, temperature (1°C steps) and acceleration/deceleration (1 second steps).
- Intuitive handling through the start, stop short spin, and lid keys.
- Rotor list on memory.
- Timer count up/down, from 0 or at “set RPM/RCF” for test reproducibility.
- Short spin key with speed adjustable.
- Automatic rotor recognition.
- Progressive acceleration and braking are selectable by operator up to 175 ramps.
- 16 memories.
- Automatic open lid (non-refrigerated)
- Lid latch lock.
- Microprocessor controlled.
- Option: free or locked adjustment of RPM/RCF along the run.
Feature
- Induction motor maintenance-free
- Max. capacity. 4 x 100 ml.
- Speed, up to 24.959 xg/16.500 RPM
- Quiet: noise level < 60 dB.
Safety
- Lid locking and holding.
- Imbalance switch off.
- Manual overriding.
- Chamber of centrifugation in stainless steel.
- Viewing and calibration port in the lid.
- Several messages keep the operator informed about the device situation.
- Guard ring between the chamber of centrifugation and the housing.
- Lid dropping protection.
- Standards and EC Directives
EU Directives: 98/79/EC, 2006/95/EC, 2004/108/EC, 2011/65/EU, 2012/19/EU.
Standards: EN 61010-1, EN 61010-2-020, EN 61326-1.
Versions
| Code | Dimensions (mm)(w x d x h) | Net weight (Kg) | Voltage (V) |
Frequency (Hz) |
Consumption (W) |
||
| CE 110 | 410 | 530 | 320 | 36 | 220-240 | 50-60 | 280 |
| CE 116 | 410 | 530 | 320 | 36 | 110-120 | 50-60 | 280 |
Accessories

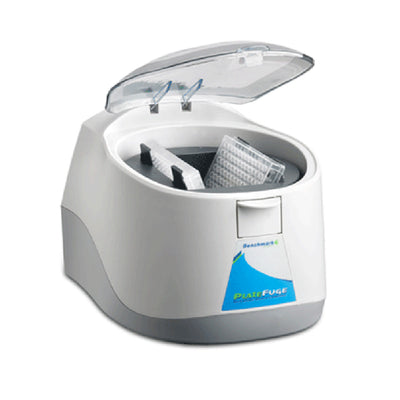

PlateFuge™ Microcentrifuge
- Quickly spins down droplets in PCR plates
- Unique swing-out rotor design prevents spillage (patented)
- Half the size of traditional centrifuges
- Accepts all popular types of PCR plates (skirted, semi, and non) and most microtiter plates
Benchmark’s PlateFuge™ is the first “mini” sized centrifuge with a swing out rotor for microplates. Centrifuging plates before PCR ensures all reactants are in the bottom of the wells for proper concentrations and improved yields.
In spite of its remarkably small footprint (9×10 in.), the PlateFuge™ includes a uniquely designed, swing out rotor (patent pending) capable of securing 2 microplates. The easily accessible rotor chamber includes two plate carriers that rest at a 75° angle. This allows plates to be inserted confidently without sealing tapes or caps. Upon closing the lid of the centrifuge, the rotor accelerates and the centrifugal force “swings” the plates into a horizontal position. Any droplets on the walls of the plate quickly concentrate into the well bottoms.
With a g-force of 600 xg, most samples can be spun down in less than 20 seconds. To end a run, simply open the lid and the automatic, electric brake brings the rotor to a quick, smooth stop in just 4 seconds. Plates can then be easily removed from the rotor.
Specifications
| Speed | 2,550 rpm/ 600 xg |
| Capacity | 2 x 2PCR Plates 2 x microtiter plates (up to 25mm) 24 x 0.2ml PCR strips |
| Deceleration | 4 Seconds |
|
Dimensions |
9.2 x 10.2 x 7.75 in. (23 x 26 x 19.7 cm) |
| Weight | 9 lbs/ 4.1 kg |
| Electrical | 115V or 230V, 50-60 Hz, 250W |
| Warranty | 2 Years |

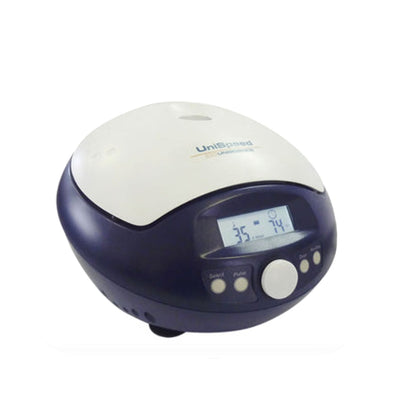

The UniSpeed is a compact and powerful high-speed centrifuge used in physical and chemistry analysis, biochemistry, cellular and molecular biology, clinical Labs and blood donation centers, and is ideal for high-end research applications. - Sedimentation of cells and viruses- Separation of sub-cellular organelles- Isolation of macro molecules such as DNA, RNA, proteins or lipids
Features: Large LCD display provides all visual information Supplied with a 12 position 1.5/2.0ml microtube aluminum rotor. Compact design Whisper quiet operation Brushless motor drive, maintenance free Pulse operation for quick spins
Automatic door lock Specification
Max. Speed : 15000 rpm (200-15000rpm), 100rpm incrementsMax.
RCF : 15100 × g, 100 rpm × g increments
Run Time : 30 secs to 99 mins Timer or Continuous Operation
Dimensions : (W) 9.8 × (L) 9.6 × (H) 5.5 inches
Weight : 13.2 lbs
Voltage : Single-Phase, 110V 60Hz, 5A
