DNA Ladder & DNA Ladder Kits
DNA Ladder & DNA Ladder Kits
Our product provides a way to isolate apoptotic DNA fragments for DNA ladder analysis. The purification method used is much faster than other DNA purification methods (e.g., phenol/chloroform extraction, DNA precipitation). Purified DNA can be mixed directly with gel loading buffer and analyzed on an agarose gel.
Overview
The 1Kb plus DNA Ladder consists of 12 DNA fragments ranging from 1Kbp to 10Kbp (300, 500, 800, 1000, 1500, 2000, 3000, 4000, 5000, 6000, 8000, 10000bp). The 3000bp band has increased intensity to serve as a reference point. The fragments may be stained with intercalating agent (e.g. UniSafe Dye®) should be run on a 0.5-1% agarose gel for maximum visualization. It is suitable for use as molecular weight standards for agarose gel electrophoresis. The 1KB plus DNA Ladder already contains 1x Loading dye.
Feature
- Ready-to-use;
- Concentration: 100ng | μl;
- Recommended Loading: 5μl; Per lane;
- Range (Kbp): 0.3–10.
- Number of Bands: 12.
Storage Buffer
- 10mM Tris-HCl (pH 8.0), 1mM EDTA.
Storage Temperature
- Store at –20°C.
Size Kit Size
- 250μl - 500μl
Figure
0.8% agarose gel in 1x TAE buffer
Overview

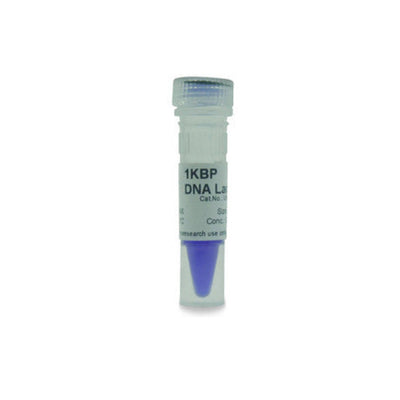

The 1Kbp DNA Ladder consists of 8 DNA fragments ranging from 1Kb to 10Kb (1000, 2000, 3000, 4000, 5000, 6000, 8000, 10000bp). The 4000bp band has increased intensity to serve as a reference point. The fragments may be stained with intercalating agent (e.g. UniSafe Dye®) and should be run on a 0.5-1% agarose gel for maximum visualization. It is suitable for use as molecular weight standards for agarose gel electrophoresis. 1kb DNA Ladder already contains 1x Loading dye.
Feature
- Ready-to-use;
- Concentration: 90ng | μl;
- Recommended Loading: 5μl;
- Per lane. Range (Kb): 1–10;
- Number of Bands: 8.
Storage Buffer
- 10mM Tris-HCl (pH 8.0), 1mM EDTA.
Storage Temperature
- Store at –20°C.
Size
- 250μl
Figure
0.8% agarose gel in 1x TAE buffer
